- BC190 Battery Charger/Line Voltage adapter
- BP190 NiMH Battery Pack
- Getting started booklet
- User manual (CD-ROM)
- TL75 Hard Point Test Lead Set
- VPS200-G Voltage Probe (200 MHz, 10:1), Grey
- VPS200-R Voltage Probe (200 MHz, 10:1), Red
Included in Fluke 192B/003:
Price: 2,145.00
- Fluke 192B/003 60 MHz ScopeMeter with Monochrome Display
- Dual-input – 200, 100 or 60 MHz bandwidth
- Up to 2.5 GS/s real time sampling per input
- Digital Persistence for analyzing complex dynamic waveforms like on an analog scope (190)
- Large, high resolution color or monochrome screen
- Connect and view automatic triggering and a full range of manual trigger modes
- Fast display update rate for seeing dynamic behavior instantaneously
- Automatic capture and replay of 100 screens
- 27,500 points per input record length using ScopeRecord mode
- TrendPlot paperless chart recorder for trend analysis up to 22 days
- UP to 1000 V independently floating isolated inputs
- Waveform reference for visual comparisons and automatic pass/fail testing (190C) of waveforms
- 1000 V CAT II and 600 V CAT III safety certified
- Five hours rechargeable Ni-MH battery pack
Features for the Fluke 192B/003 are:
The Fluke 192B/003 ScopeMeter high-performance oscilloscopes offer specifications usually found on top-end bench instruments. With up to 200 MHz bandwidth and 2.5 GS/s real-time sampling and a deep memory of 27,500 points per input they're ideal for engineers who need the full capabilities of a high-performance oscilloscope in a handheld, battery powered instrument.
Part No.: 192B/003

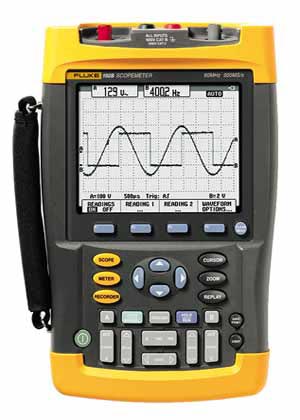

Fluke 192B/003 60 MHz Scope Meter
SCOPE METERS
