- BC190 Battery Charger/Line Voltage adapter
- BP190 NiMH Battery Pack
- Getting started booklet
- User manual (CD-ROM)
- TL75 Hard Point Test Lead Set
- VPS200-G Voltage Probe (200 MHz, 10:1), Grey
- VPS200-R Voltage Probe (200 MHz, 10:1), Red
Accessory Package for Fluke 196C/003 includes:
Price: 2,845.00
- Bandwidth: 100 MHz
- Channels: 2 + external /DMM input isolated and ground
- Horizontal Accuracy: 0.01%
- Vertical Sensitivity: 2mV/div to 100V/div
- Max. Real-Time Sample Rate: 1 GS/s
- Time Base Range: 10 ns/div to 2 min/div
- Trigger Types: Connect-and-View™, Free Run, Single Shot, Edge, Delay, Video, Video line and External delay with selectable pulse width
- Glitch Capture: 50 nsec
- AutoScope Measurements: 26
- Max. Record Length: 27,500 points per input (10ms/div to 2 min/div)
- Auto Capture of 100 Screens: Yes, with replay capability
- WF Memory: 10 screens/10 setups
- Memory: 2/100 screen
- Additional features: 14.4 cm full color LCD with digital persistence; Pass/Fail testing
Features for the Fluke 196C/003 are:
The full color display makes identification of individual waveforms easier, particularly when displaying large amplitude or multiple overlapping waveforms on screen. On-screen color labels, measurements and warnings are clearly linked to specific waveforms. The high-resolution, color screen and new Digital Persistance and fast display update rate mode gives you an even better view of complex wave-forms in the most demanding troubleshooting applications in the field.
Part No.: 196C/003

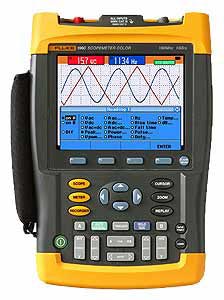

Fluke 196C/003 100 MHz Color Scope Meter
