- Waveform reference for visual comparisons and automatic pass/fail testing of waveforms
- Vpwm function for motor drive and frequency inverter applications.
- 1000 V CAT II and 600 V CAT III safety certified
- Four hours rechargeable Ni-MH battery pack
- BC190 Battery Charger/Line Voltage adapter
- BP190 NiMH Battery Pack
- Getting started booklet
- User manual (CD-ROM)
- TL75 Hard Point Test Lead Set
- VPS200-G Voltage Probe (200 MHz, 10:1), Gray
- VPS200-R Voltage Probe (200 MHz, 10:1), Red
Included in Fluke 199C/003:
Price: 3,195.00
- Dual-input - 200 MHz bandwidth
- Up to 2.5 GS/s real-time sampling per input
- High waveform resolution of 3,000 datapoints per channel
- Automatic and advanced triggering functions - Connect-and-View™, pulse width, dual slope and n-cycle for synchronizing on specific wafeform details
- Fast Fourier Transform (FFT) for frequency domain, spectrum display of signal harmonics or fidelity.
- Digital Persistence for analyzing complex dynamic waveforms like on an analog scope
- Fast display update rate for seeing dynamic behavior instantaneously
- Automatic capture and replay of 100 screens
- 27,500 points per input record length using ScopeRecord™ mode
- TrendPlot™ paperless chart recorder for trend analysis up to 22 days
- Up to 1000 V independently floating isolated inputs
Features for the Fluke 199C/003 are:
Whether you are performing routine maintenance and calibration, or troubleshooting the hardest to solve problems like intermittent failures or sources of unwanted noise, the Fluke 199C Monochrome ScopeMeter has all the tools needed to get the job done.
With 200 MHz bandwidth, up to 2.5 GS/s real-time sampling rate, 27,500 points memory for high resolution waveform per input they’re ideal for engineers who need the full capabilities of a high-performance oscilloscope in a handheld, battery powered instrument.
With 200 MHz bandwidth, up to 2.5 GS/s real-time sampling rate, 27,500 points memory for high resolution waveform per input they’re ideal for engineers who need the full capabilities of a high-performance oscilloscope in a handheld, battery powered instrument.
Part No.: 199C/003

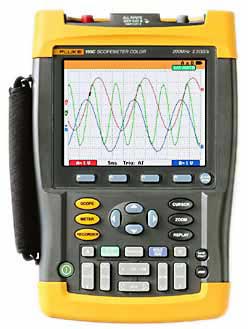

Fluke 199C/003 200 MHz ScopeMeter
