4 3/4" high in front 7" high in back
Size: 14 1/2" X 17 1/2"

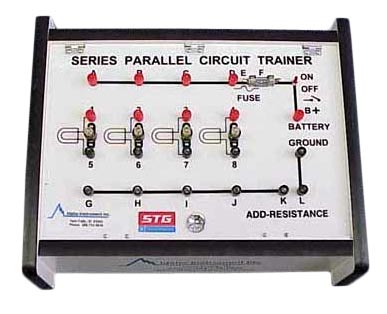

The Series Parallel Circuit Trainer allows students practical experience in creating series and parallel circuits through application of patch cords in different configurations. By using different resistor modules, the students can also observe how different resistance values affect circuits.
Module or Part# |
Description |
Kit Quality |
| SPCT5W1 | 5W 1 ohm resistor |
1 |
| SPCT5W10 | 5W 10 ohm resistor |
1 |
| SPCT5W47 | 5W 47 ohm resostor |
1 |
| SPCT5W100 | 5W 100 ohm resistor |
1 |
| SPCTWJ | Wire jumper |
1 |
Banana plug patch Cord pair 12", black and red |
4 |
|
1487 bulbs |
4 |
|
2A fuse |
1 |
Price: $325.00 Ten or More $ 295.00 ea
Material: The top is 3/16" Acrylic mounted in an angled wood stand for desk or table top use. Top is hinged for storage of modules and patch cords.
Modules Included: All mounted on white acrylic plastic. Banana plugs on back for inserting and removing from test board.
Power Supply: Switchable--0-14V @ 3A Variable regulated supply; 12V @ 3a Fixed regulated supply*
*power supply is not included with the series parallel, but it is an option for an additional $75.00
Specifications:
Series Parallel Trainer
EDUCATIONAL
